I-HIE2PI-EL

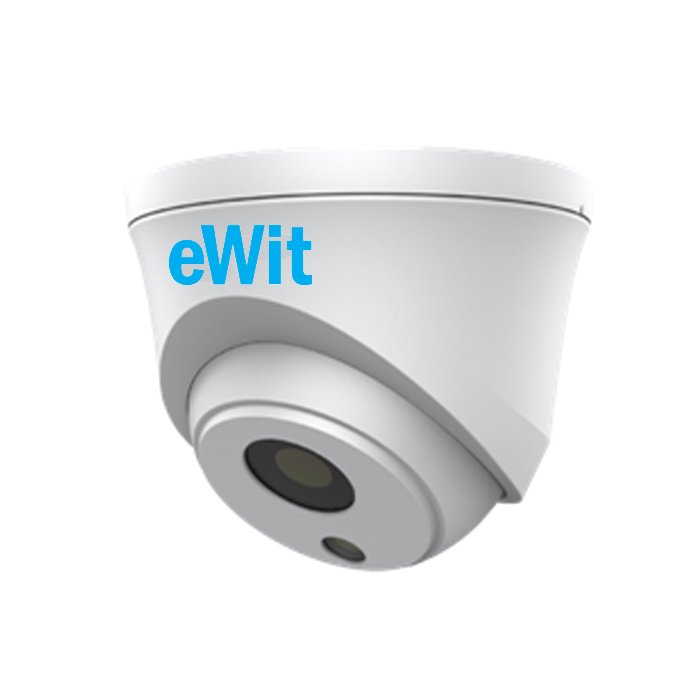

2MP Fixed IR Dome Camera

The new EWit IP series of cameras provide high-quality yet affordable surveillance for small and medium businesses which include small retail shops, gyms, schools, residential homes, etc. The new series includes high resolution IP IR cameras, in both eyeball dome and bullet conﬁgurations, and comes with ﬁxed and variable lens options. The new EWit IP series caters to all kinds of customer applications. The cameras come with various variants of IR LEDs to provide best-in-class, effective and efﬁcient surveillance even during the night. The cameras are IP66/IP67 rated which makes them resilient for any indoor/outdoor applications as well.

FEATURES AND BENEFITS
Up to 1920×1080@30fps	IH+265/ H.265/H.264	Min. illumination Color: 0.02Lux@F2.0	Smart IR, IR Range: Up to 30M
Built-In Mic	Support tripwire and perimeter	Operating Conditions -30oC~60oC, 0~95% RH	POE, IP66

Product Enquiry

Category: CCTV

Description
Reviews (0)

SPECIFICATIONS

MATERIAL SPECIFICATIONS
CAMERA
Image Sensor	1/2.8” CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time	1s to 1/100,000s
Day & Night	Dual IR Cut Filter with Auto Switch
Wide Dynamic Range	Digital WDR
Angle Adjustment	Pan 0~340°, tilt 0~75°, roate 0~360°
LENS
Lens Type	Fixed
Focus	2.8mm
Lens Mount	M12
Aperture	F2.0, Fixed
FOV	Horizontal ﬁeld of view: 99.7°; Vertical ﬁeld of view: 55.1°
ILLUMINATOR
IR LEDs	1
IR Range	Up to 30m
Wavelength	850nm

COMPRESSION STANDARD
Video Compression	IH+265/H.265/H.264
Video Bit Rate	32Kbps~6Mbps
Audio Compression	G.711/G.711U/ADPCM
Audio Bit Rate	8K~48Kbps
Max. Resolution	1920×1080
Main Stream	PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080,1280×720, 704×480, 640×480)
Sub Stream	PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Setting	Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement	BLC/3D DNR/HLC
OSD	16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Privacy Mask	Yes, 4 regions
Smart Defog	Yes
FEATURE
Alarm Trigger	Motion Detection, Mask Alarm, IP Address Conﬂict
Video Analytics	Tripwire, Perimeter
NETWORK
Protocols	TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility	ONVIF (PROFILE S/T/G), SDK
Remote Connection	≤7
Client	IH-VIEW
Web Version	Web5
INTERFACE
Communication Interface	1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O	Mic in
GENERAL
Web Client Language	English
Operating Conditions	-30oC~60oC, 0~95% RH
Power Supply	DC 12V±25%, PoE (802.3af)
Power Consumption	MAX: 6W(12V) MAX: 8W(POE)
Protection	IP66, Lightning protection, surge protection
Dimensions	117×117×96mm (4.61×4.61×3.78inch)
Weight	0.3Kg (0.66lb)
