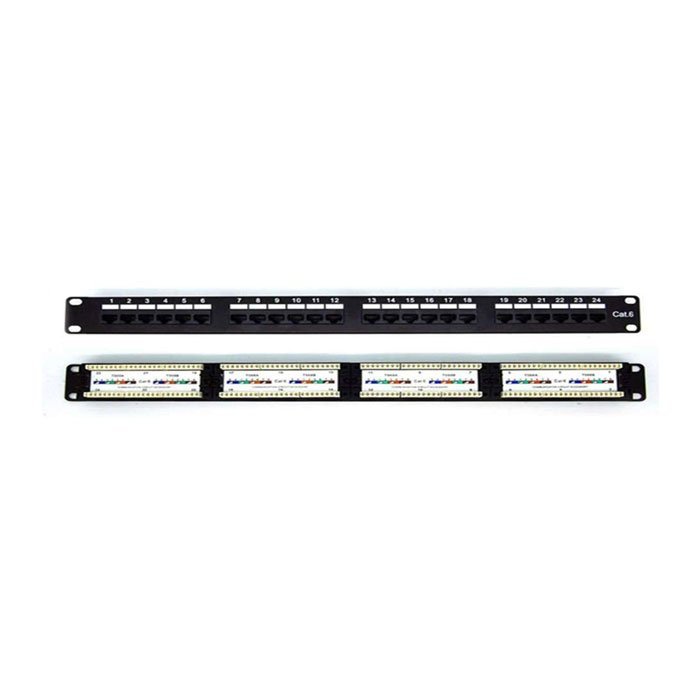

EW-PP024

eWit’s Category 6 Patch Panels offer you all the functionality and compatibility as any name brand. Each panel comes with 110-type termination, while meeting and exceeding EIA/TIA TSB-40 Cat6 connecting hardware specifications. Color coded for both EIA/TIA 568A & 568B installations. 24 ports ensure a wide range of plug-n-play options. The clear numbering on both the front and back of each panel gives you a quick and easy way to identify cable runs and the high density 19in panel design will save you valuable space in on the rack.

Product Enquiry

Specifications:

Connect Compatibility: 19″ 1U straight Patch Panel,
Housing: HIF Retardant Plastic
IDC Conductor: 0.5MM Phosphor Bronze Tin Plating
Current Rating: 1.5 A
Insulation Resistance: >= 500mΩ
DC/AC Volt Endurance: DC 1000V/AC 750V 1 Min
DC Resistance: <=0.1Ω
DC/AC Volt Endurance: DC 1000V/AC 750V 1 Min
Plug Retention Force: >= 11 LBF
Plug Insertion Life: >= 750 Cycles with FCC Compliant RJ-45 Plug
Durability: 200 Termination Cycles
Temperature : -10 Degree ~ 60 Degree
Humidity 10% ~ 90% RH
Storage Temperature -40 Degree ~ 68 Degree
Standard: ISO, CE, FC, ROHS
