Specifications
| PoE Ports: | 8 x 1G Base-Tx RJ45 PoE ports and 4 x 1G SFP uplink ports (10/100/1000 Mbps) |
| Type | Industrial grade layer-2 POE Ethernet switch |
| Standard Network Protocols: |
IEEE 802.3 af (PoE), IEEE 802.3at (PoE Plus), IEEE 802.3ad Trunking (LACP), IEEE 802.3x full‐duplex flow control, IEEE 802.1p Class of Service, IEEE 802.1X Radius network access control |
| MAC address Table: | 8K |
| Switching Capacity: | 20GBPS |
| Packet Forwarding Rate: | 14.9 MBPS |
| Forwarding Mode: | Store‐and‐forward switching |
| Packet Buffer Memory: | 4K |
| PoE Ports: | 1 To 8 |
| Jumbo Frame: | 10240 Bytes |
| PoE Power Budget: | 120W |
| QOS: |
Support 802.1p CoS/DSCP priority, Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR, Port/Flow‐ based Rate Limiting |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol‐based VLAN Management VLAN configuration |
| Access Control List: | L2～L4 package filtering based on source and destination |
| MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID; Time Range Based | |
| Management: | Web‐based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs DHCP/BOOTP Client, DHCP Snooping, CPU Monitoring, Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| Operating Temperature: | 0 °C to 60 °C |
| Storage Temperature: | ‐40 ° ~ 70 ° C |
| Storage Humidity: | 5% to 95% RH Non‐Condensing |
| Power Supply | Dual redundant power input 110-220 VAC |
| Certification: | CE, FCC, ROHS |
| Protocol & Features |
IPv4, IPv6 , HTTP, HTTPS, FTP, SMTP, SNMP, DHCP, DNS, DynDNS, RTSP, RTP, TCP, UDP , VLAN, LLDP, IEEE 802.1x, QoS, ACL , PoE or equivalent better protocols |
| Mounting | Rack Mount |

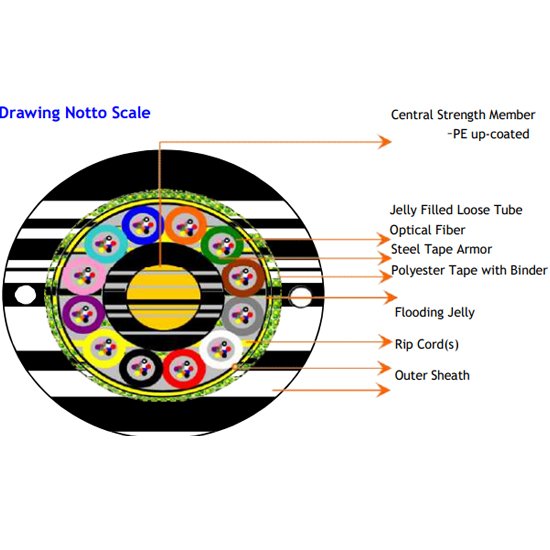

Cable Construction details
| Central Strength Member | FibreReinforcedPlastic-FRP(Non-metallic)up-jacketedwithPEifrequired |
| Steel Wires | 2Nos.inoutersheath |
| Loose Tube | PBT Loose Tube filled with Thyrotrophic jelly/td> |
| Fibre Colours | Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Natural |
| LooseTube Colours | Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua |
| Fillers | Black Colour |
| TubeI identifications sequence | Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua,Fil |
| Water Blocking Compound | Flooding Jelly |
| Core wrapping | Polyester Tape with Binder |
| Rip Cords | 1Nos.belowarmour |
| Armoring | Corrugated Steel Tape |
| Outer Sheath | High Density Polyethylene-Black colour |
