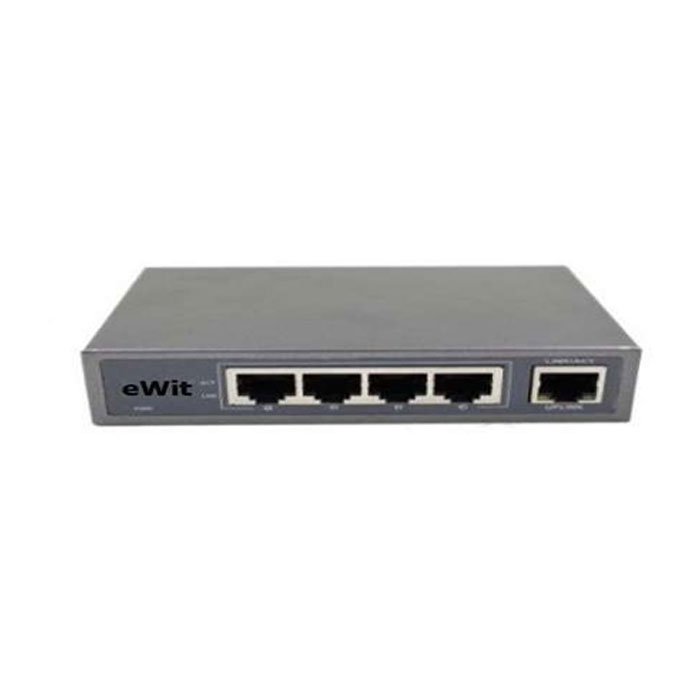

EW-P04E

Technical Specification:-

PoE Ports:	4: 10/100/1000 mbps RJ 45
Optical port	1: 1000Base-X (SFP)
Uplink Ports:	2: 1/100/1000 Ethernet Port
POE Protocol:	PoE (IEEE802.3af), PoE+(IEEE802.3at) Hi-PoE
RJ45 Port:	4: 10/100/1000Base-Tx RJ45 ports
POE Protocol	PoE (IEEE802.3af), PoE+(IEEE802.3at) Hi-PoE
Packet Buffer Memory:	4MB
Flow Control:	IEEE 802.3af,IEEE802.3at
MAC Table Size:	8K, Built-in over Current Protection
NTP:	Support, Support Dual DC Power Backup
DHCP:	Support
Switching Capacity	1 Gbps
VLAN:	Support
Spanning Tree:	STP, RTSP, MSTP
LLDP:	Support
Working Temperature:	–0° C to 60° C
Weight:	1.5 KG
Certification:	ISO, CE, FC, ROHS
POE Budget	30W PoE power per port and up to 120W power budge
Protocol & Features	IPv4, IPv6 , HTTP, HTTPS, FTP, SMTP, SNMP, DHCP, DNS, DynDNS, RTSP, RTP, TCP, UDP , VLAN, LLDP, IEEE 802.1x, QoS, ACL , PoE or equivalent better protocols
