SPECIFICATIONS

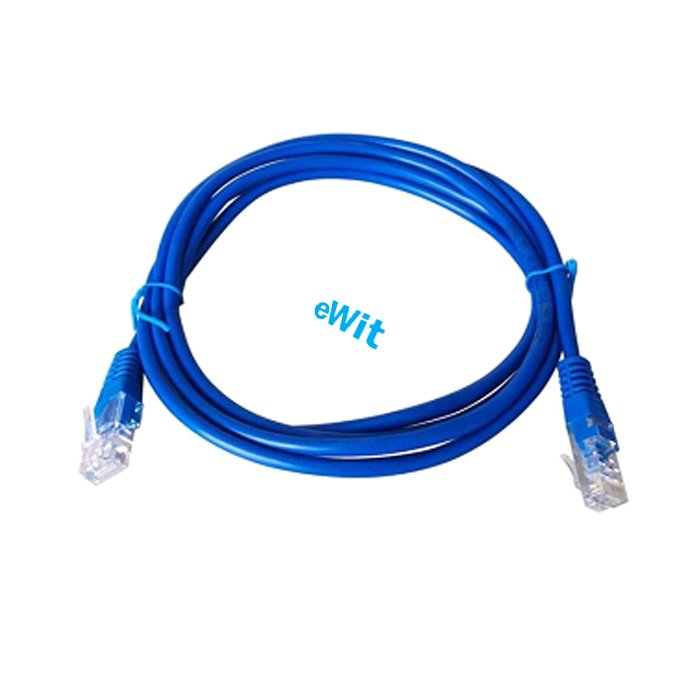

• • • 4 Pairs Unshielded Twisted Pair (UTP) Cable
    • Conductor Metal: Bare Copper
    • Color Code: Gray Conductor: 24 AWG
    • Insulation Material: HD-PE
    • Jacket Material: PVC UL94V-0
    • Heat-resistant: 60oC minimum (Temperature limited)
    • Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL); FT-1 (CSA) standards.

  MODULAR CONNECTOR/PLUG

  • RJ-45 8P for Transparence
  • Gold plated: 30U”
  • Contact blade: Phosphor Bronze
  • Temperature range: -10 ~ 80o C
  • Dielectric withstanding voltage: 500V AC
  • Insulation resistance: 35M Ohm (max.)
  • Durability: 750 matching cycles
  • Cable-to-plug tensile strength: 20lbs (89N) (min.)
  • UL applications: 250V AC, 2A (max.)
  • Polycarbonate (PC) UL94-V-0

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)
