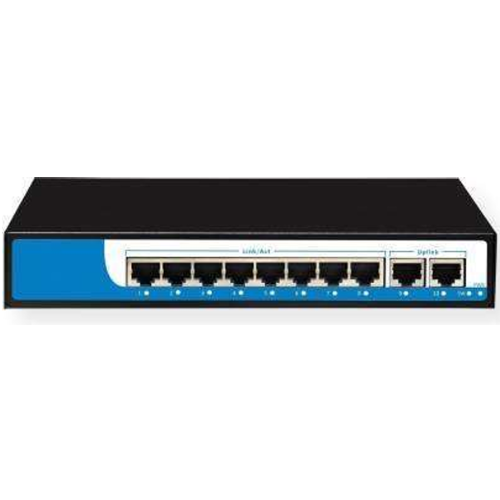

Specification:
| Type of Switch: | Unmanaged |
| Technology: | PoE |
| Network Ports: | 8: 10/100/1000 Mbps PoE RJ45 port (Port 1~Port 8) 2: 10/100/1000 Mbps Non-PoE RJ45 Port Uplink |
|
Standard Network Protocols: |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3x Flow Control IEEE 802.3af/at compliance (for PoE ports on PoE models) |
| Transfer Rate: | 1000 Mbps Full Duplex, 10/100/1000 Mbps Half Duplex Network Interface: 10BASE-T or 100BASE-TX Ethernet RJ-45 port |
| PoE Output: | 15.4W/30W IEEE802.3af/at |
| PoE Type: | End-Span |
| MAC address Table: | 2K |
| Switching Capacity: | 12 GBPS |
| Through Put: | 14 Mbps |
| Packet Forwarding Rate: | 1.488 Mpps |
| Forwarding Mode: | Store‐and‐Forward Switching |
| Transmission Distance: | 1~150M |
| Transmission Method: | Store and Froward |
| Packet Buffer Memory: | 4MB |
| PoE Ports: | 1 To 8 |
| Jumbo Frame: | 10240 Bytes |
| Power Pin: | 1/2(+), 3/6(-) |
|
Performance: |
Bandwidth: 5.6Gbps (No Block)
Frames Filter and Transfer Rate: 10M: 14800pps, 100M: 148800pps, 1000M: 148800pps |
| LEDs Indicator: | Power, LINK/ACT, PoE |
| Operating Temperature: | -30°C to 60°C |
| Storage Temperature: | ‐40°C ~ 70°C |
| Working Humidity: | 10% to 90% RH Non‐Condensing |
| Max Port Power: | 30W |
| PoE Power Supply: | 1/2 (+), 3/6 (-) |
| PoE Power Budget: | 96W |
| Max. Power Consumption: | 120W |
| Surge Protection: | PoE Port with 6KV Surge Protection |
| Storage Humidity: | 5% to 90% RH Non‐Condensing |
| Power Supply | AC 180~240VAC 50/60HZ |
| Power Source: | Input: 100-240V, AC, 50/60Hz, Built in Power Supply |
| Certification: | CE, FCC, ROHS |
| Country of Origin: | India |
