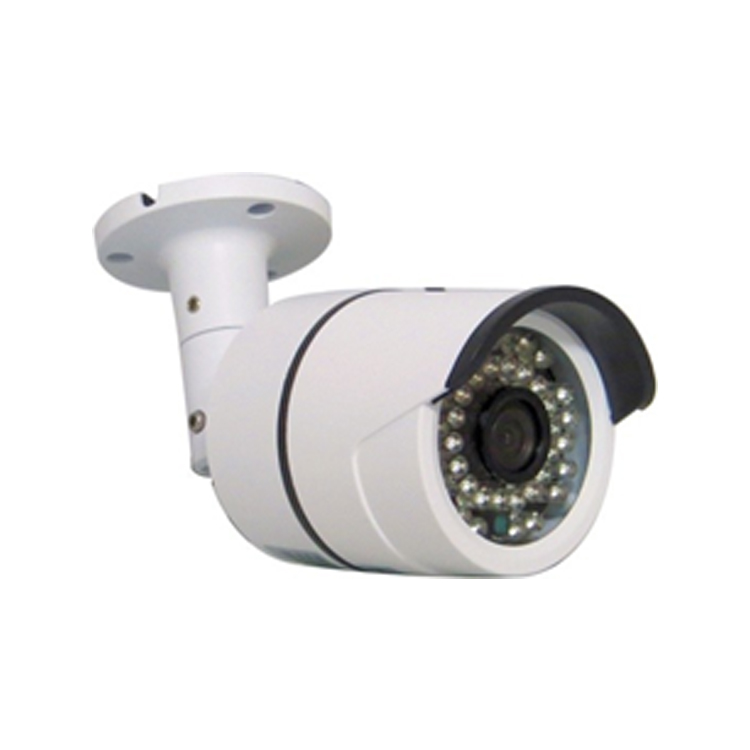

EW-HD5030B
Key Features –
- 1/2.7” 5MP CMOS Image Sensor
- 30 Meter IR Range
- Low Illumination
- True Day & Night
- Wide Operating Temperature
- Turbo Full HD
- 25fps@5MP (16:9 video output)
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- OSD Menu, Control Over Coaxial Cable, 2D- DNR
- CVI/CVBS/AHD/TVI Switchable
Description
| Camera | |
|---|---|
| Body Type: | Dome |
| Image Sensor: | 1/2.7″ Progressive Scan CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.02 Lux@F2.0, 30 IRE, 0 lux with IR B/W: 0.002 Lux@F2.0, 30 IRE, 0 lux with IR |
| Shutter Speed: | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Lens: | 3.6mm Lens (2.8mm Optional) |
| Lens Type: | Fixed Lens |
| Lens Mount: | M12 |
| Max Aperture: | F2.0 |
| Resolution: | 5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Gain Control (AGC): | Auto/Manual |
| Digital Zoom: | 16X |
| White Balance: | Auto/Manual |
| Angle of View: | 3.6MM: D-104°, H-88°, V-46°, 2.8MM: D-125°, H-106°, V-56° |
| Close Focus Distance: | 2.8MM: 0.8M, 3.6MM: 1.2M |
| DORI Distance: | 2.8MM: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify) |
| Day& Night: | Electronic |
| Horizontal Resolution: | 5 MP |
| Synchronization: | Internal Synchronization |
| Video Output: | CVI/TVI/AHD/CVBS by one BNC |
| S/N Ratio: | 65 dB |
| ICR: | Auto/Manual |
| OSD: | Multi Language |
| Privacy Masking: | On/off 8 Areas |
| Video Streaming: | CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H |
| Video Output: | 1-Ch BNC HD Video Output/ CVBS Video Output (Switchable) |
| Back Light Compression: | BLC/HLC/DWDR |
| General | |
| Operating Conditions: | -40 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 V DC±30% |
| Power Consumption: | 2.7W max. |
| Weather Proof: | IP67 |
| IR Range: | 30 LED (Approx 30 meters) |
| Country of Origin: | India |
| Certified: | BIS, CE, FC and RoHS |
